What makes Landquip mowers ‘best of breed"
Unique features that make Landquip Pasture topping Mower’s superior.
Strength
We know that the nature of mowing pasture in Australia can extremely hard on mower body’s due to often hard and stony ground. As a result of customer and dealer feedback, we have standardized our heavy-duty PM-series range to include an 8mm thick deck. Body design also features an under-body brace which keeps the gearbox mounting area rigid and ensures the drive train stays aligned for a longer lifetime.
Simplistic design
Customers and dealers appreciate the simplicity of our design. We've found the right balance— not too rigid to crack and not too flexible to loosen bolts. This ensures durability and reliability.
Heavy duty side skid plates
We use high-tensile skids for durability, these are adjustable to set the cutting height.
Models
| Model | PM12 | PM15 | PM16 | PM18 | PM24 | PM27 | PM30 | PM36 |
|---|---|---|---|---|---|---|---|---|
| Weight | 250kg | 280kg | 300kg | 340 kg | 580 kg | 650 kg | 750 kg | 830kg |
| Overall Width | 1340mm | 1640mm | 1740mm | 1940mm | 2550mm | 2800mm | 3100mm | 3715mm |
| Overall Length | 1400mm | 1700mm | 1900mm | 2100mm | 1610mm | 1700mm | 1560mm | 1680mm |
| Overall Height | 900mm | 900mm | 900mm | 950mm | 1000mm | 1000mm | 1000mm | 1000mm |
| Ground to Mower Deck | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Cutting Width | 1150mm | 1450mm | 1550mm | 1750mm | 2420mm | 2670mm | 2970mm | 3570mm |
| Cutting Height | 30-120mm | 40-120mm | 40-120mm | 40-120mm | 40-120mm | 40-120mm | 40-120mm | 40-120mm |
| Number of Rotors | 1 | 1 | 1 | 1 | 2 | 2 | 3 | 3 |
| Number of Blades | 2 | 2 | 4 | 4 | 4 | 4 | 6 | 6 |
| Speed of Blades | 13,300 f/m | 15,880 ft/m | 13,600 ft/m | 14,890 ft/m | 17,700 f/m | 17,790 ft/m | 12,500 ft/m 17,361 ft/m | 13,100 ft/m 18,194 ft/m |
| Maximum Power of Tractor | 40 HP | 75 HP | 75 HP | 75 HP | 130 HP | 130 HP | 150 HP | 150 HP |
| PTO Revs | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM | 540 RPM 750 RPM | 540 RPM |
Add-On Options
The following options can be added to your choice of PM-series mower
+ Rear Roller
Recommended for a nicer finish in applications such as mowing parks, schools, golf courses etc. The PM-series mowers come standard with bolt holes for a rear roller to be fitted.
+ Chain guard
Enhance safety with our robust galvanized chain guard, designed to prevent debris from being thrown forward.

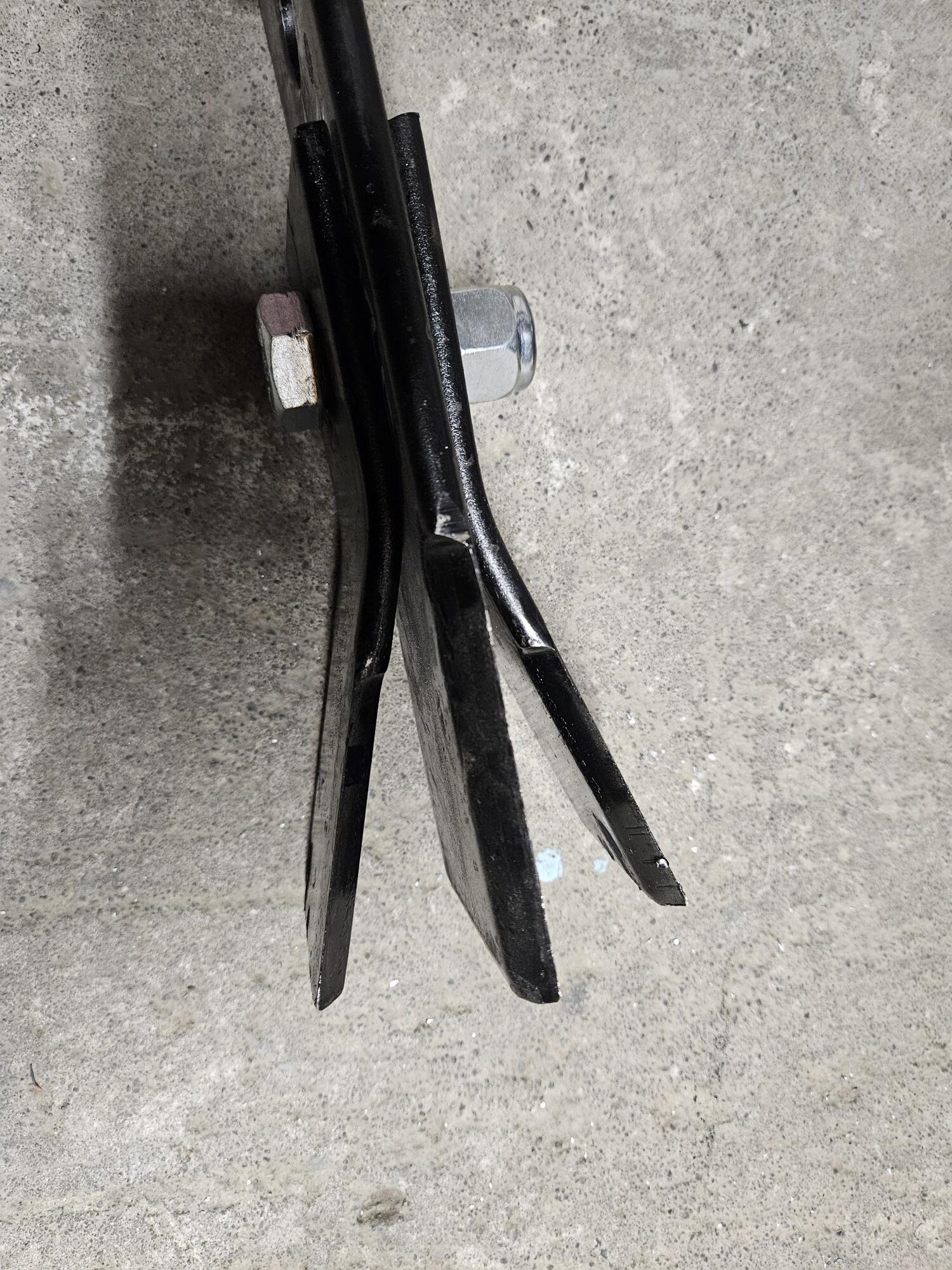

+ Fling tips
These tips are designed for an extra-low, fine cut, easily reversible and replaceable as they wear.
+ Mulching blade kit
Double down on your asset by adding a heavy-duty 3-blade mulching kit so you can convert the mower into a mulcher.
+ Wheel kit
Wheels are often favoured over rollers for their smoother ride and minimized ground scouring during turns when the mower is in the down position. Featuring a full 360 degrees of swivel, our heavy-duty hub/stub is equipped with tapered bearings to ensure optimal performance and durability.
Anti Scalping Domes
When mowing in undulating terrain, anti-scalping domes are recommended to prevent the blades from cutting into the soil in high patches. In undulating terrain, anti-scalping domes are recommended to reduce the risk of blades cutting into the soil in elevated areas. This ensures an even and effective mowing finish and prevents potential damage and wear to the blades and mower.

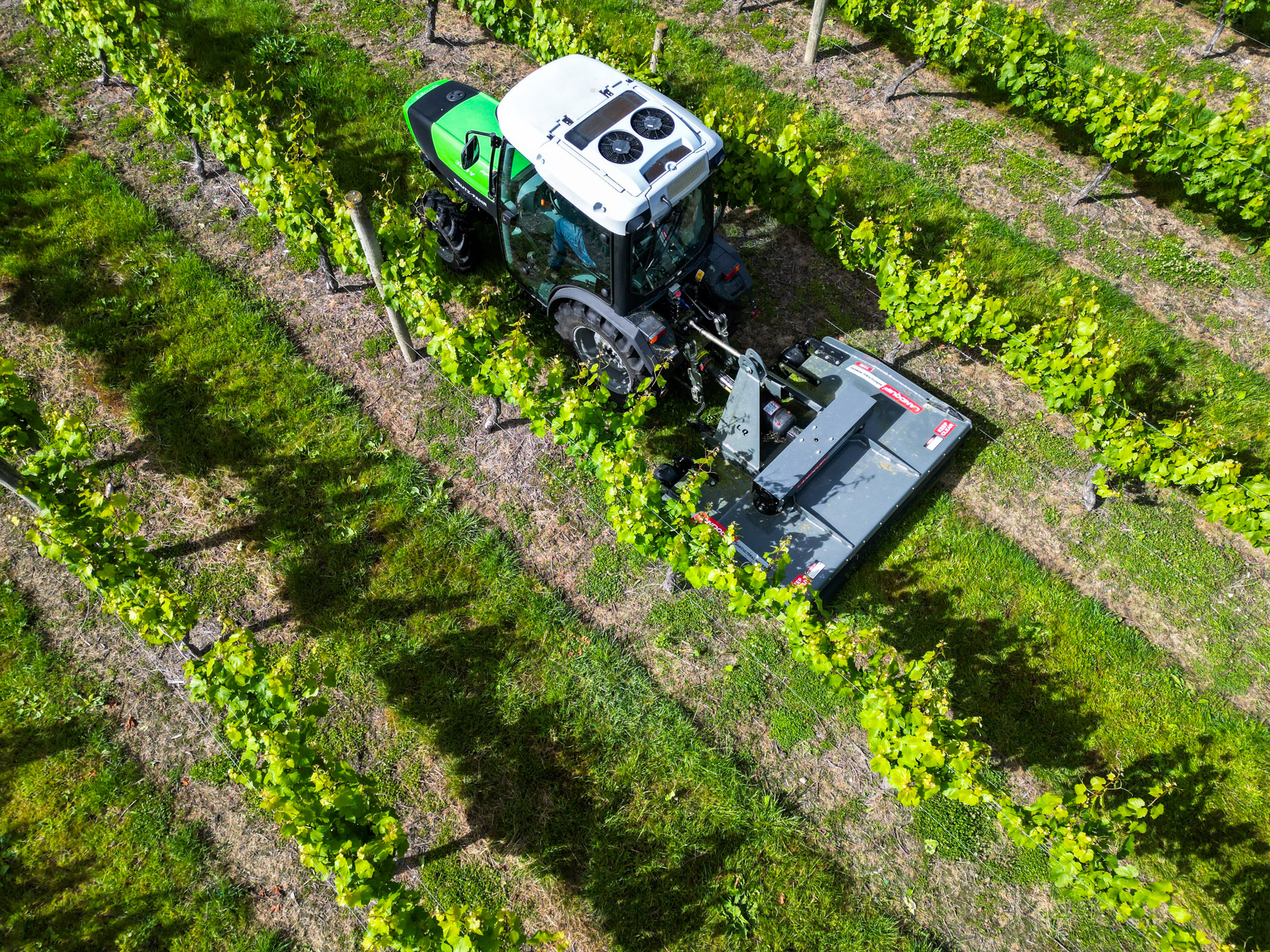

In Use
“I manage Accolade wines in Central Otago, we run 115 Hectares and its hard rocky sandy soil here, pretty harsh conditions for mowers. We came across this mower about 4 years ago and have been really happy with it, the balance of it, the speed of the cutters, it’s been great. It does a really nice job, a good finish, no matter what the condition of the grass is even if it’s weedy. It’s been nice and hardy, just low maintenance, don’t have to worry about bearings or anything like that and it sits on the tractor really well. It’s just been a really good unit. Low fuss which is what we want, less time fixing it up.”
Warranty
All Landquip Mowers come with Landquip’s renowned ‘Best of breed’ – 2 year warranty
- Covers any defective workmanship on all parts and components of the Mower
FAQ
-
Do you ship to Australia?
Yes, we do. We have multiple dealers across Australia. Contact us to find out your closest dealer.
-
Do you make custom design?
Not generally, however we’ll consider anything, please don’t hesitate to contact us.
-
Do you sell spare parts?
Yes we have a special ‘spare parts’ department.
Do you have any questions about Landquip Mowers? Call us on +64 6 879 4992
