Pruning Sweeps for Efficient Orchard Maintenance

Horticulture Equipment

Cut orchard clean-up time with our single-pass sweep and mulch system. Designed to clear prunings, leaf litter, and old fruit in one go, our sweepers suit a range of row widths and crop types—from pipfruit and stonefruit to vineyards. Choose rubber flap or brush heads and more to match your setup. Save time, reduce fuel and labour costs, protect irrigation lines, and get your orchard/vineyard prepped for the season—quick smart.

Models
Features
Available Sizes
In Use
FAQs

Single- or double-sided sweepers available, depending on your row spacing, growing style, and mulcher width. We’ll help match the right setup to your orchard for maximum efficiency.

Double-sided Vineyard / Orchard Sweep

Single-sided Sweep

With over 30 years of experience, Landquip’s pruning sweepers are built on decades of design, field testing, and operator feedback. Trusted by growers across the country, they deliver reliable results season after season.

Versatile Mounting Options

Choose from 3-point linkage, fixed mount, or ERO plate for flexible installation.

Adaptable to Any Row Spacing

Generous side-shift travel accommodates most vineyard and orchard row widths.

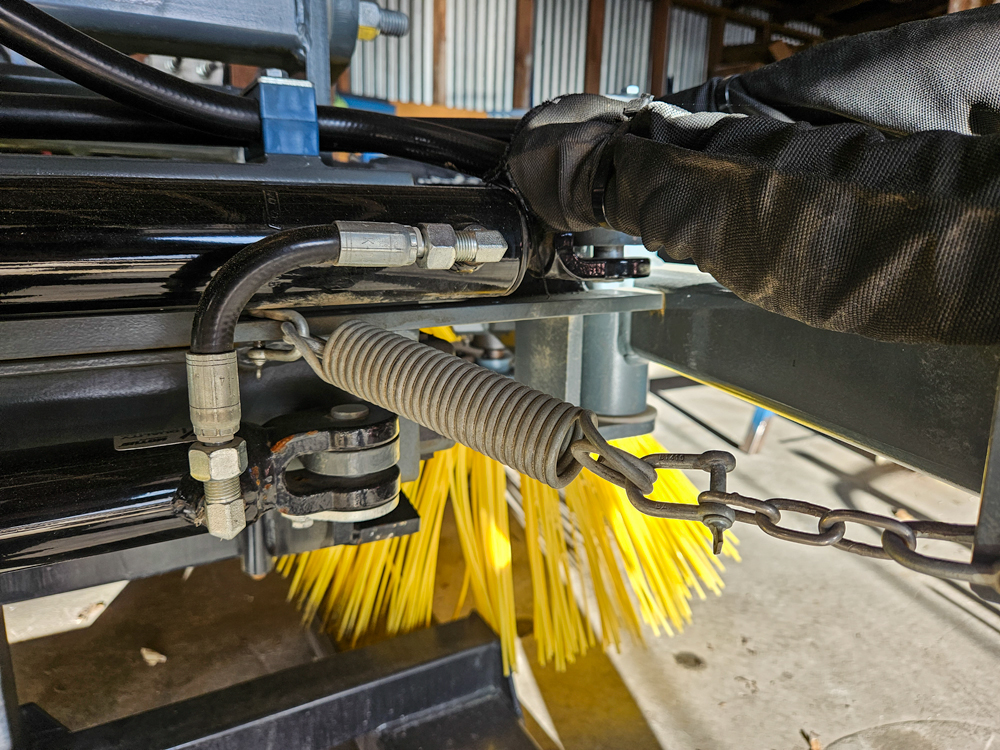

Breakaway Spring Protection

Prevents damage to posts, vines, trees, and the machine with a built-in breakaway spring system.

Fully Adjustable Design

Offers two-axis angle adjustment, along with lift and side-shift capabilities for precise control.

Pruning Sweeps	Single Fixed	Single Manual	Single Hydraulic	Double Narrow	Double Wide	Double Wide 3PL	Double Narrow Fixed
Max Row Centers Width	Unlimited	Unlimited	Unlimited	2.5m	3m	3m	2.5m
Min Row Centers Width	2.5m	2.0m	2.0m	1.7m	2.2m	2.2m	1.7m
Min Oil Flow Required	40lpm	40lpm	40lpm	40lpm	40lpm	40lpm	40lpm
Hydraulic Circuits Required	2	2	3	3	3	2	2
Breakaway Spring	No	No	No	Yes	Yes	Yes	Yes

“The biggest challenge we have in our business is labor. Any machine we can utilize that creates efficiency in productivity is really important. We’re running 38 canopy hectares with four different tree sizes, so having the hydraulic sweeper that we can set up at the start of the season and move in and out of each block with minimal change.”

Andrew Douglas Manager at Douglas Fruit Company

Douglas Fruit Company in Hastings

Do you ship internationally?

We ship to Australia, talk to us about where your nearest dealer is located.
Can these be mounted to any tractor?

These can be mounted to almost any orchard/vineyard style, contact us with details about your tractor to find out.
Can the different style heads be swapped over?

Yes all have a universal drive plate that can be used for all head styles.

Have questions about our Sweepers? Call us on 0800 269 776 (NZ) or 1800 879 156 (AUS)
